DRILL RODS & CASING

DRILL RODS

Proudly Made in Canada

When it comes to drill rods, reliability is key. No one wants to waste time and precious budget fishing for a broken rod string and lost tooling. More reliable drill rods mean cleaner shifts, reduced downtime, and increased productivity, resulting in improved profitability for drillers. That's where Mud Masters drill rods shine. Our rods have earned a global reputation for outstanding reliability, achieving up to two times the normal drill string life compared to major competitors under the same conditions.

HIGHLY RELIABLE DRILL RODS

MUD MASTER UNIQUE INDICATOR GROOVES

Each rod is engraved with our unique indicator grooves to help drillers easily identify the thread in use and its joint location to help improve productivity and safety. By providing easy identification of the thread with an exterior indicator, our drill rods:

  • Help prevent accidental mixing and matching of equipment in the field, thereby avoiding unsecured drill string components.
  • Save time when tripping the drill string by easily identifying joints.
  • Provide an easy visual wear indicator of the outside diameter.
R REVERSE FLANK WIRELINE DRILL ROD

Our version of the reverse flank thread form, engineered to precise tolerances for more strength. After precision machining, our threads undergo a specialty surface treatment process that reduces galling. The combined result leads to longer drill string life, reduced wear on both pin and box threads, and less bulging belling, and breaking.

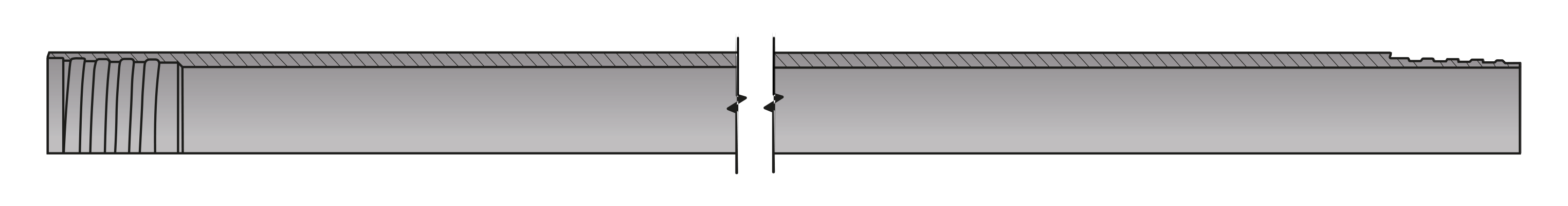

PARALLEL WALL TUBING

Uniform wall thickness for even wear and less vibration resulting in longer life.

The variable wall thickness ensures a strong joint while decreasing the overall weight of the drill rod without compromising life while parallel wall tubing offers a more robust rod.

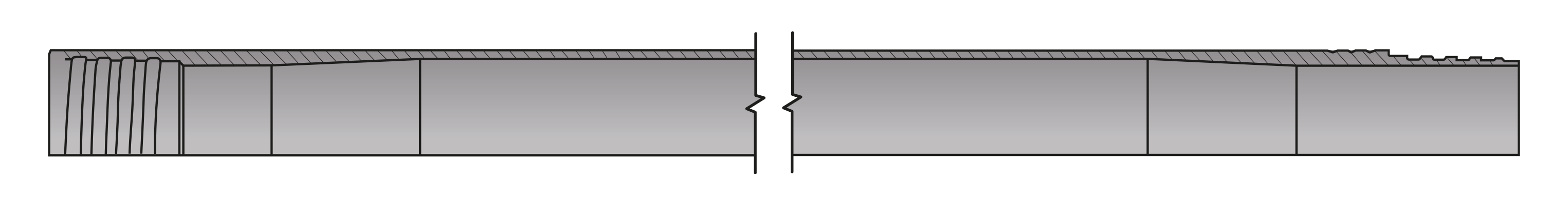

VARIABLE WALL (LITE) TUBING

The Variable Wall (LITE) tubing option offers an internally upset midbody, resulting in less rod weight for greater deep hole drilling with smaller, lower-powered drills.

  • Weight reduction: N = 12% | H = 22% |Р = 23%
  • Easier and less expensive mobilization to site.
  • Thinner midbody makes LITE drill rods ideal for projects requiring wedging.

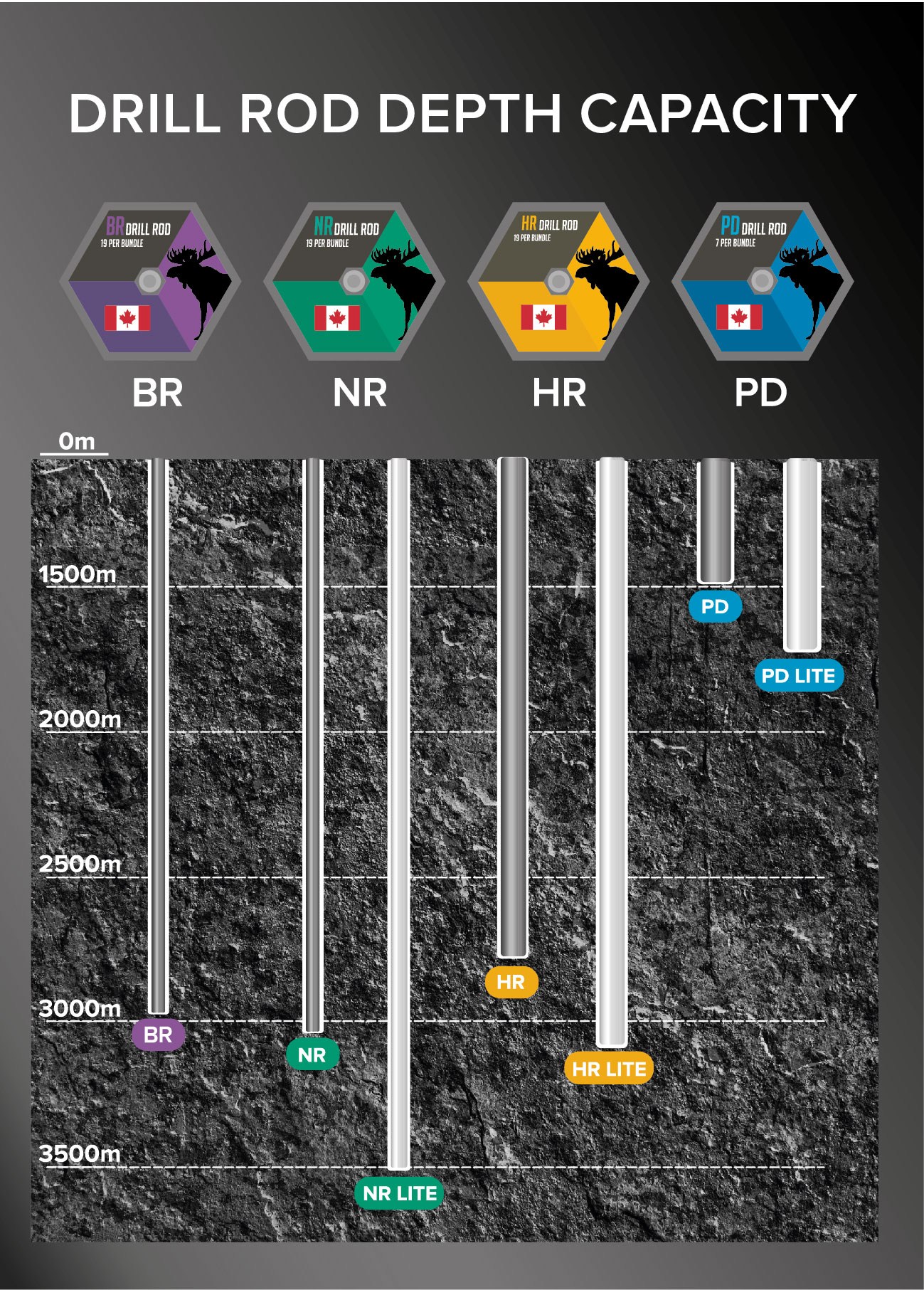

DRILL ROD DEPTH CHART

If depth capacity and/or drill string weight becomes an issue, MUD MASTER offers a lighter-weight drill rod alternative in deep hole (D), reverse flank (R), and standard wireline (WL) thread forms.
