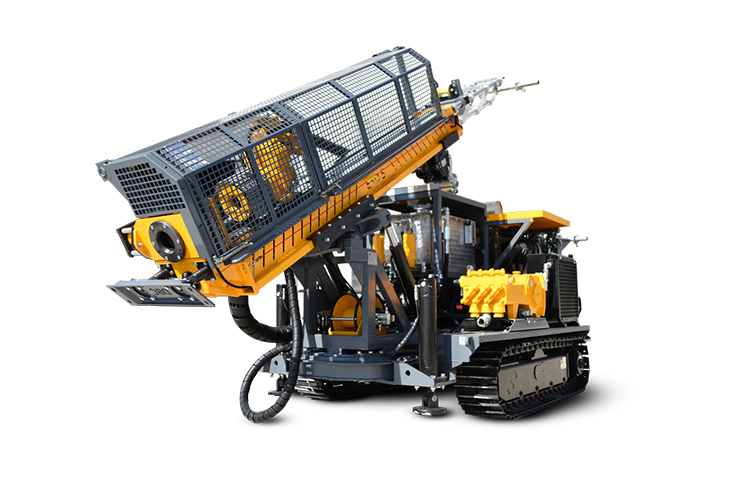

ESD-5

Depth Capacity N wireline - 450 m

Core Drill Rig - Surface / Underground

• Compact drill rig for mid-range drilling
• Suitable for exploration and ore definition drilling in the mines
• Suitable for ground investigation and grout hole drilling on construction sites
• Suitable for coring or non-core drilling
• Suitable for drilling all directions (including upwards) underground
• Surface and underground versions
• N size spindle
• Gas spring rod holder
• Synchronized chuck and rod holder for fast rod running

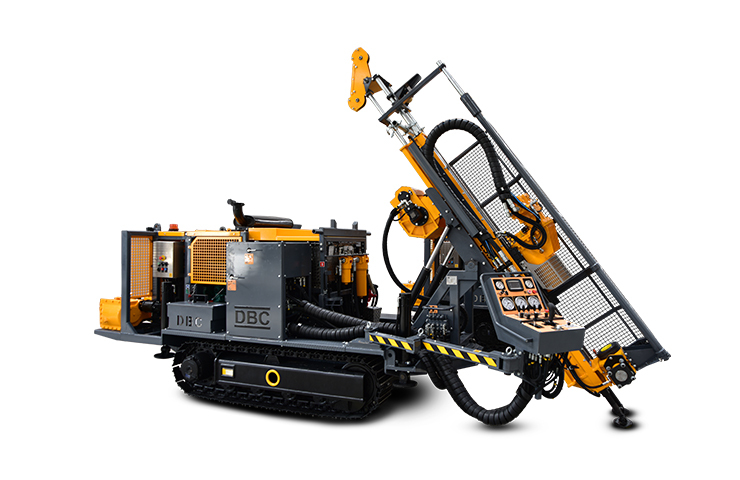

ESD-9

Depth Capacity N wireline - 750 m

Core Drill Rig - Surface / Underground

• Compact and powerful drill rig for all kind of drilling purposes
• Suitable for exploration and ore definition drilling in the mines
• Suitable for ground investigation and grout hole drilling on construction sites
• Suitable for coring or non-core drilling
• Suitable for drilling all directions (including upwards) underground
• Surface and underground versions
• H size spindle
• Gas spring rod holder
• Synchronized chuck and rod holder for fast rod running

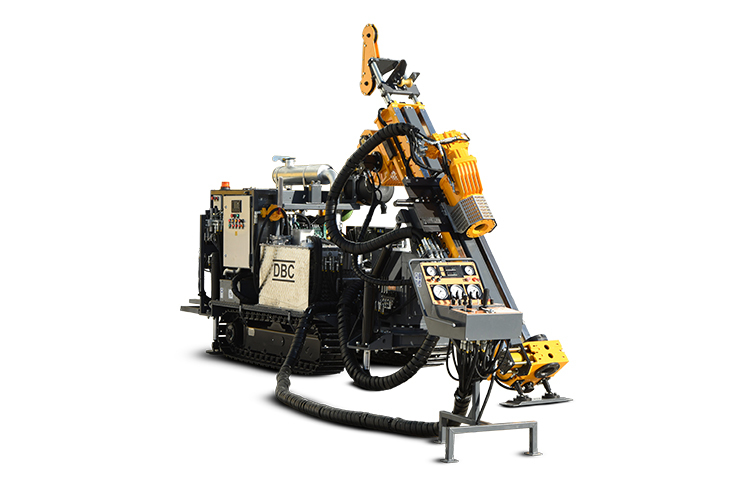

ESD-13

Depth Capacity N wireline - 1500 m

Core Drill Rig - Surface / Underground

• Big power in compact design
• Suitable for deep and challenging drilling conditions.
• Suitable for drilling all directions (including upwards) underground
• Surface and underground versions
• H size spindle
• Gas spring rod holder
• Synchronized chuck and rod holder for fast rod running

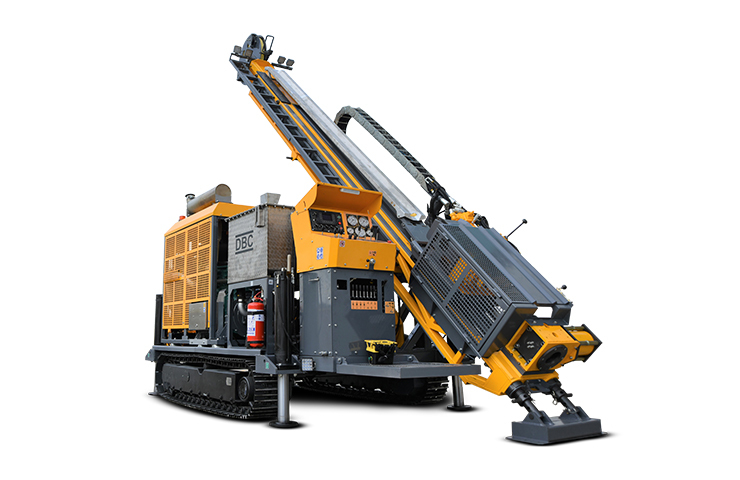

S-15

Depth Capacity N wireline - 1200 m

Core Drill Rig - Surface

• Powerful option for all kind of drilling on surface
• Suitable for all kind of exploration core drilling and non-core drilling with tricone and PCD bits
• Ergonomic operator panel
• Powerful main hoist with high line speed
• Compact transport size thanks to telescopic mast design.
• Low and safe working height with dumping mast
• Patented rod elevator for safe handling of rods and inner tubes
• Easy drilling with DDP (Digital Drilling Package)
• Gear driven and field proven rotation unit
• Gas spring rod holder
• Skid or crawler mounted for high mobility
• Special options for cold climate environment.
• Synchronized chuck and rod holder available on request

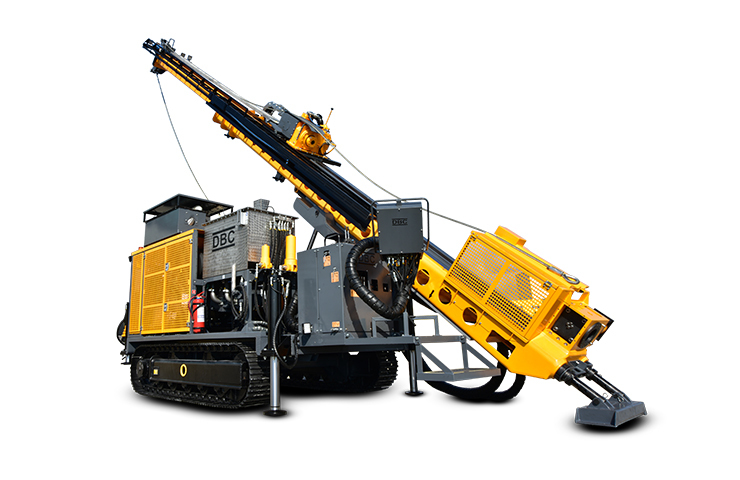

S-21

Depth Capacity N wireline - 2400 m

Core Drill Rig - Surface

• Big power for deep and challenging drilling operations on surface
• Suitable for all kind of exploration core drilling and non-core drilling with tricone and PCD bits
• Ergonomic operator panel
• Powerful main hoist with automatic power and speed shift for fast rod running.
• Low and safe working height with dumping mast
• Patented rod elevator for safe handling of rods and inner tubes
• Heavy duty mast design for heavy conditions
• Easy drilling with DDP (Digital Drilling Package)
• Good transport size thanks to telescopic mast design.
• Rope tensioner for main hoist for safety
• Gear driven and field proven rotation unit
• Gas spring rod holder
• Skid or crawler mounted for high mobility
• Special options for cold climate environment.
• Synchronized chuck and rod holder available on request

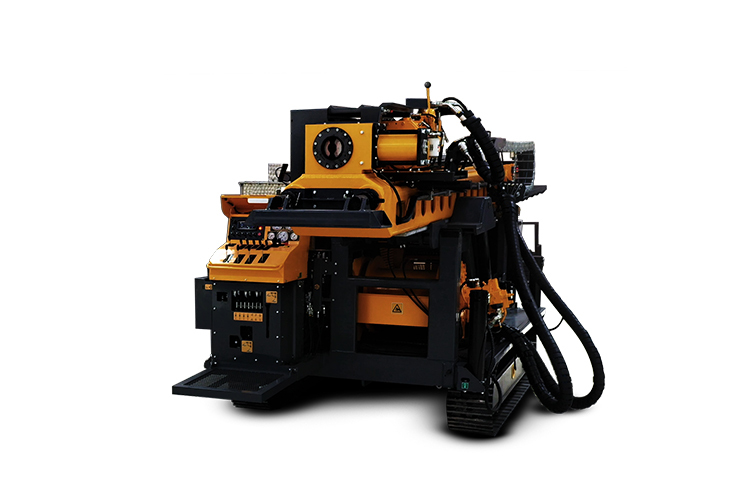

S-25

Depth Capacity N wireline - 3000 m

Core Drill Rig - Surface

• Big power for extra deep and challanging drilling operations on surface
• Suitable for all kind of exploration core drilling and non-core drilling with tricone and PCD bits
• Ergonomic operator panel
• Powerful main hoist with manuel power and speed shift for fast rod running.
• Low and safe working height with dumping mast
• Heavy duty mast design for heavy conditions
• Easy drilling with DDP (Digital Drilling Package)
• Good transport size thanks to telescopic mast design.
• Rope tensioner for main hoist for safety
• Gear driven and field proven rotation unit
• Gas spring rod holder
• Skid or crawler mounted for high mobility
• Special options for cold climate environment.
• Synchronized chuck and rod holder available on request
